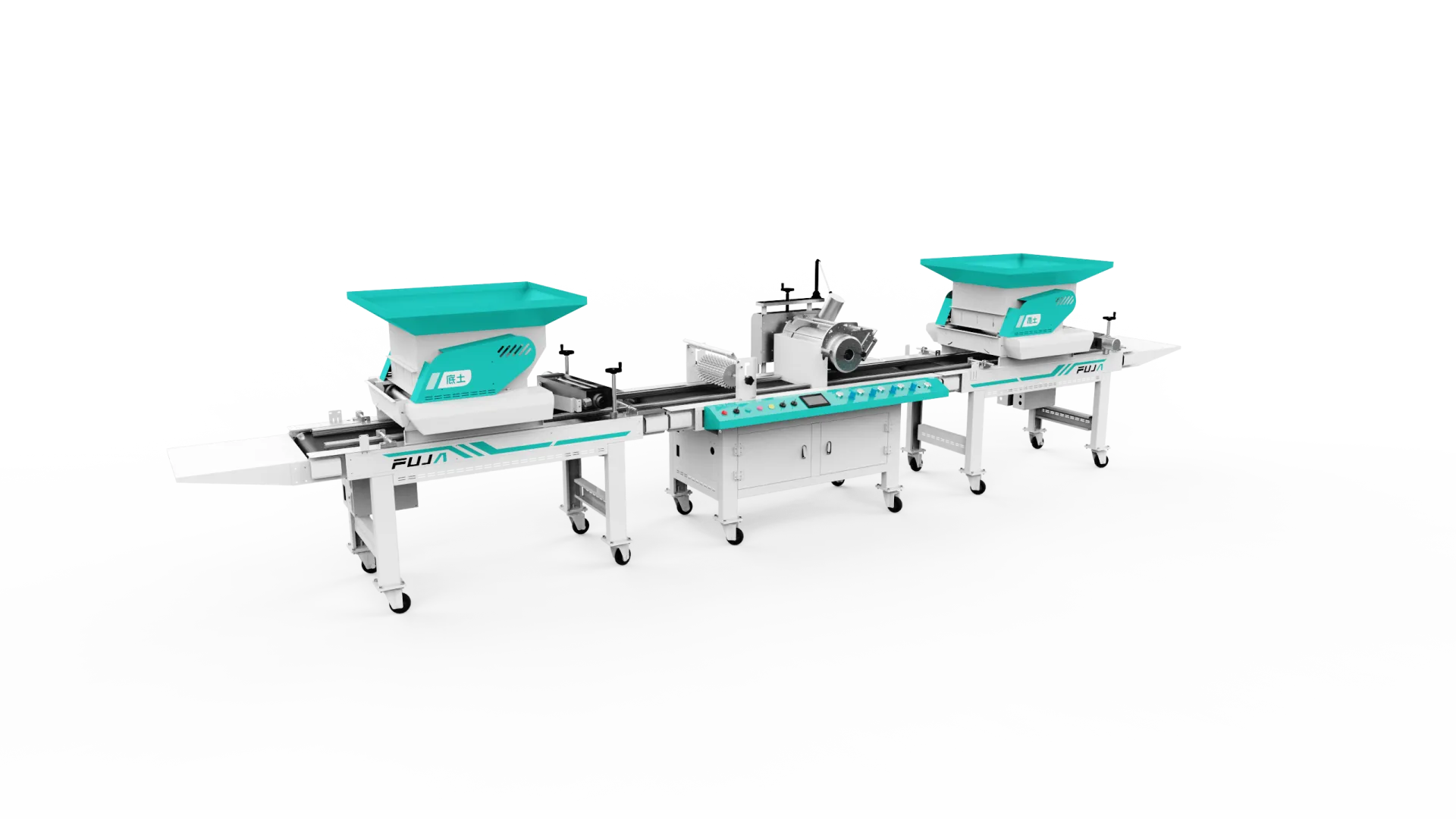

Stationary seeding line for vegetable nurseries, with a capacity of ≥1,000 trays/h. Overall dimensions 616 × 85 × 138 cm, total power 3.88 kW.
The 2BP-1000 is a stationary seeding line built for vegetable nurseries. Trays pass through one continuous flow — soil filling, pneumatic drum seeding, soil covering and brush leveling — with stepless seed-rate adjustment for accurate, uniform placement across different vegetable varieties.
Advantages
• Precision Seeding
• High-Efficiency Operation
• Intelligent Speed Control
Specifications
| Item | Unit | Value |
|---|---|---|
| Model | / | 2BP-1000 |
| Structural Type | / | Stationary |
| Overall Dimensions (L × W × H) | cm | 616 × 85 × 138 |
| Hourly Productivity | trays/h | ≥1000 |
| Soil Spreading Type | / | Air-Suction Drum Type |
| Soil Spreading Hopper Capacity | L | ≥60 |
| Seed Metering Device Type | / | Belt Type |
| Seed Rate Adjustment | / | Replaceable Drum |
| Soil Covering Unit Type | / | Belt Scraper Type |
| Soil Leveling Type | / | Rotary Brush Type |
| Conveyor Drive Type | / | Belt Drive |
| Total Power Output | kW | 3.88 |
| Motor Rated Speed | r/min | 1400 |
| Power Source Type | / | Electric Motor |
