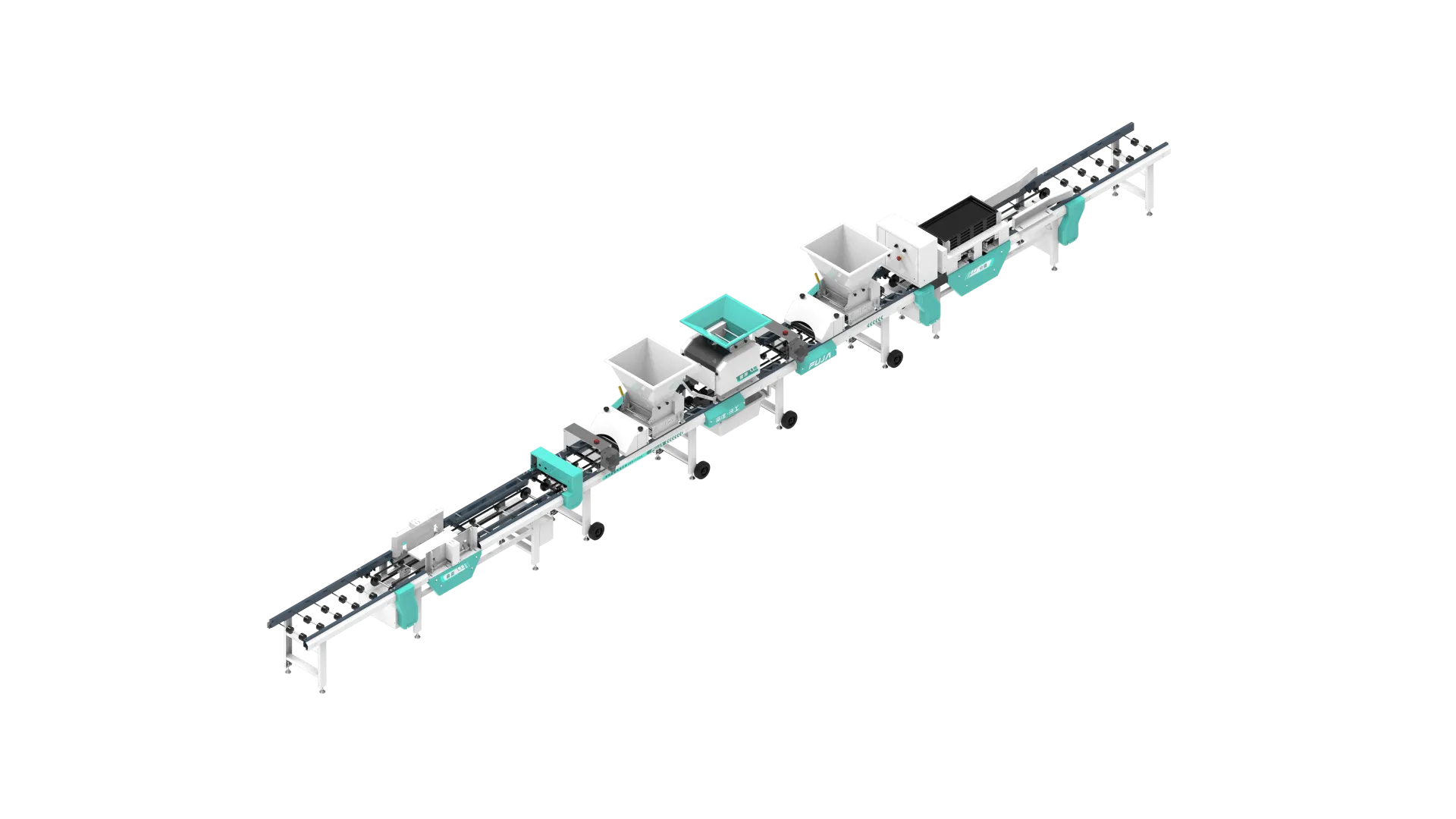

2BP-1200 Seedling Raising & Sowing Production Line, a complete sowing workflow with a capacity of up to 1,200 trays per hour.
The 2BP-1200 seedling raising & sowing production line is built around four core units — soil spreading, watering, soil covering and chemical spraying — matched to rice, rapeseed, vegetables and other crops. The complete sowing workflow is finished in one continuous pass.
Applications
• Commercial Rice Seedling Factories & Central Nursery Centers
• Agricultural Cooperatives & Large Scale Farms
• Greenhouse Plug Seedling Production
• Agricultural Service Centers & Agri Demo Projects
Competitive Advantage
• High throughput & uniform sowing
• Fully automatic integrated workflow
• Modular design with individual motor control
Specifications
| Item | Unit | Value |
|---|---|---|
| Model | / | 2BP-1200 Seedling Sowing Equipment |
| Structural Type | / | Stationary |
| Overall Machine Dimensions in Operating State (L × W × H) | mm | 6000 × 750 × 1190 |
| Hourly Productivity | trays/h | ≤1200 |
| Soil Spreading Unit Type | / | Belt Scraper Type |
| Soil Spreading Hopper Capacity | L | ≥65 |
| Seed Metering Device Type | / | External Fluted Roller Type |
| Seeding Rate Adjustment | / | Stepless Speed Regulation |
| Seeding Hopper Capacity | L | ≥24 |
| Soil Covering Unit Type | / | Belt Scraper Type |
| Soil Covering Hopper Capacity | L | ≥65 |
| Soil Leveling Type | / | Rotary Brush Type |
| Conveyor Drive Type | / | Belt Drive |
| Working Process | / | Conveying – Tray Placing – Soil Spreading – Brush Leveling – Watering – Seeding – Soil Covering – Watering – Tray Stacking |
| Total Power Output | kW | 0.63 |
| Power Source Type | / | Electric Motor |
