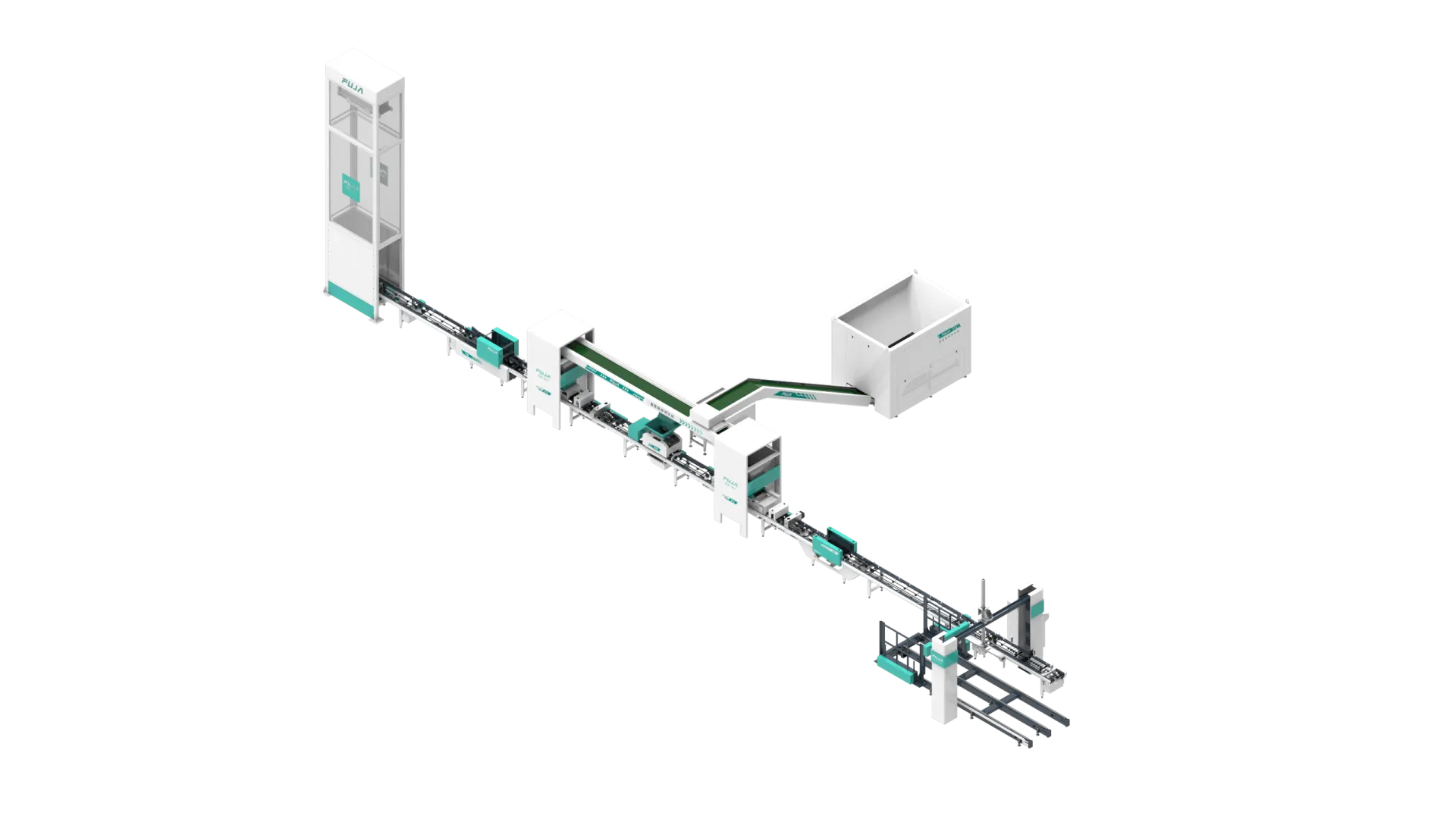

2BP-2000 Fully Automatic High-Speed Rice Seedling Sowing Machine.Stationary electric sowing line for rice nursery trays. Overall size in operating state 22,800 × 1,550 × 2,500 mm, capacity ≥2,000 trays/h, 1,580 L soil hoppers (125 L small + 1,455 L auto-feed) for both spreading and covering.
Trays move through the line with no manual handling: feeding, separation, soil spreading, pressing, watering, seeding, soil covering, a second watering pass and stacking. Soil spreading and covering each use a belt scraper with conveyor belt, the tray surface is finished by a rotary brush, and seeding rate can be set steplessly to suit different rice varieties and tray formats.
Applications
• Commercial Rice Seedling Factories & Central Nursery Centers
• Agricultural Cooperatives & Large Scale Farms
• Greenhouse Plug Seedling Production
Competitive Advantage
• Ultra-high capacity, 2000 trays/h
• Full-process smart control
• Industrial-grade durability
Specifications
| Item | Unit | Value |
|---|---|---|
| Model | / | 2BP-2000 Fully Automatic High-Speed Rice Seedling Sowing Machine |
| Structural Type | / | Stationary |
| Overall Machine Dimensions in Operating State (L × W × H) | cm | 2280 × 155 × 250 |
| Hourly Productivity | trays/h | ≥2,000 |
| Soil Spreading Unit Type | / | Belt Scraper + Conveyor Belt |
| Soil Spreading Hopper Capacity | L | 1,580 (small hopper 125 + auto-feed large hopper 1,455) |
| Seed Metering Device Type | / | Transverse External Fluted Roller Type |
| No. of Seeding Rate Adjustment Steps | / | Stepless Speed Regulation |
| Seeding Hopper Capacity | L | 96 |
| Soil Covering Unit Type | / | Belt Scraper + Conveyor Belt |
| Soil Covering Hopper Capacity | L | 1,580 (small hopper 125 + auto-feed large hopper 1,455) |
| Soil Leveling Type | / | Rotary Brush Type |
| Conveyor Drive Type | / | Chain Sprocket + Circulating Belt Conveyor |
| Working Process | / | Conveying – Tray Separation – Soil Spreading – Pressing – Watering – Seeding – Soil Covering – Watering – Tray Stacking – Tray Feeding |
| Power Source Type | / | Electric Motor |
| Total Power Output | kW | 9.50 |
