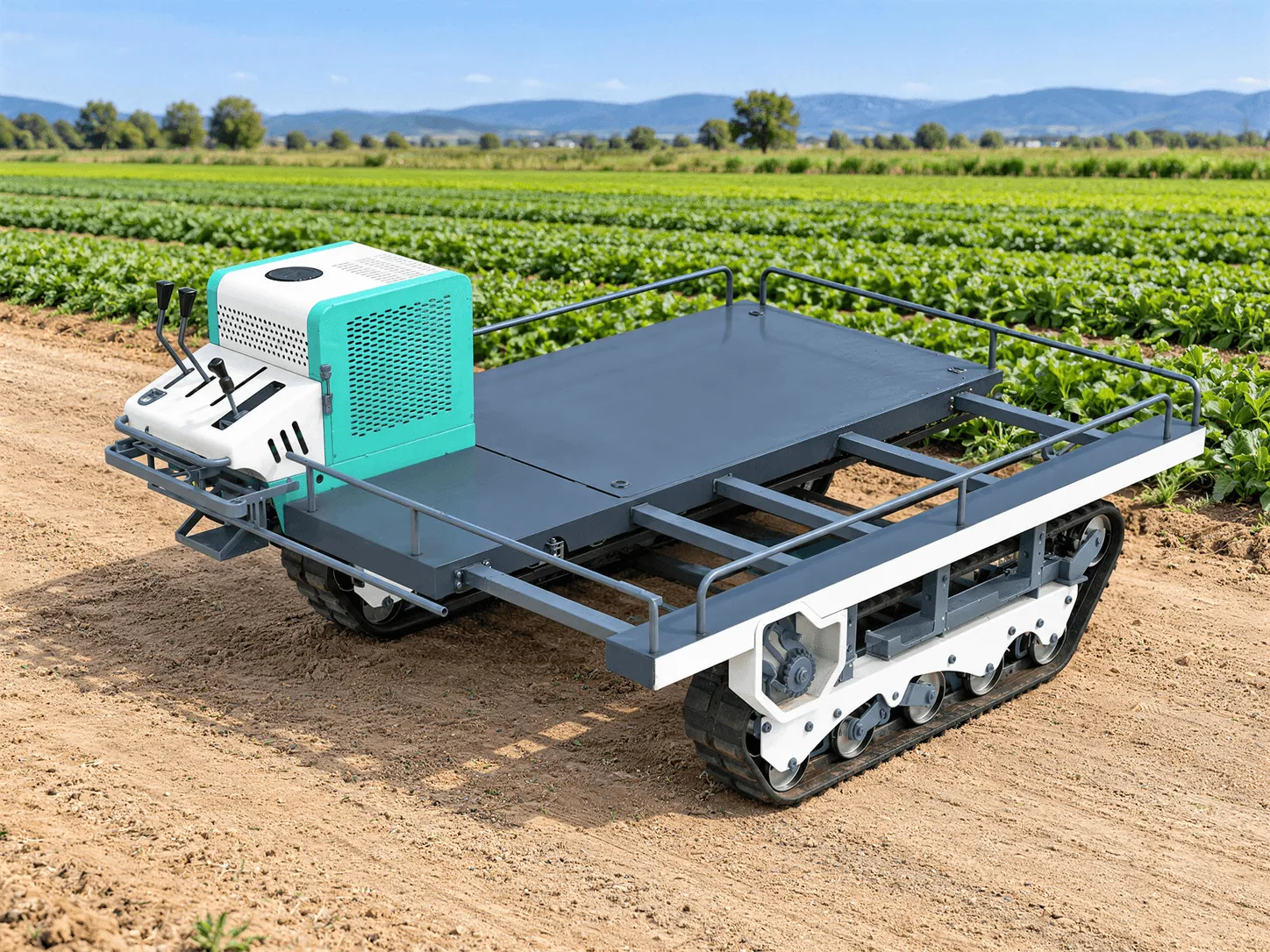

Lightweight high-clearance crawler platform, 399 kg, 650 kg load capacity, electrically adjustable ground clearance (510–710 mm).
Built on a lightweight, high-clearance tracked chassis, the platform is compact and agile and is not restricted by field conditions. Ground clearance and track gauge are both electrically adjustable, and the load deck width is variable, from 1205 mm up to 2005 mm. It efficiently performs field management operations and in-field transport of agricultural supplies.
Advantages
• Adjustable load deck
• High ground clearance, anti-sinking design
• Dual-purpose: field work and transport
Specifications
| Item | Unit | Value |
|---|---|---|
| Total Weight | kg | 399 |
| Overall Length | mm | 2410 |
| Overall Width | mm | Standard 1275 — Max. 2075 (variable) |
| Overall Height | mm | 1115–1315 (2 positions) |
| Min. Ground Clearance | mm | 510–710 (2 positions) |
| Rated Load Capacity | kg | 650 |
| Load Deck Length | mm | 2145 |
| Load Deck Width | mm | 1205–2005 (variable) |
| Engine Power | kW (hp) | 2.3 (3.1); Max. 3.0 (4.2) |
| Adjustable Track Gauge | mm | 900–1700 |
| Track Width | mm | 130 |
| Max. Travel Speed | km/h | Forward 3.45 / Reverse 2.9 |
| Min. Turning Radius | mm | 1700 |
