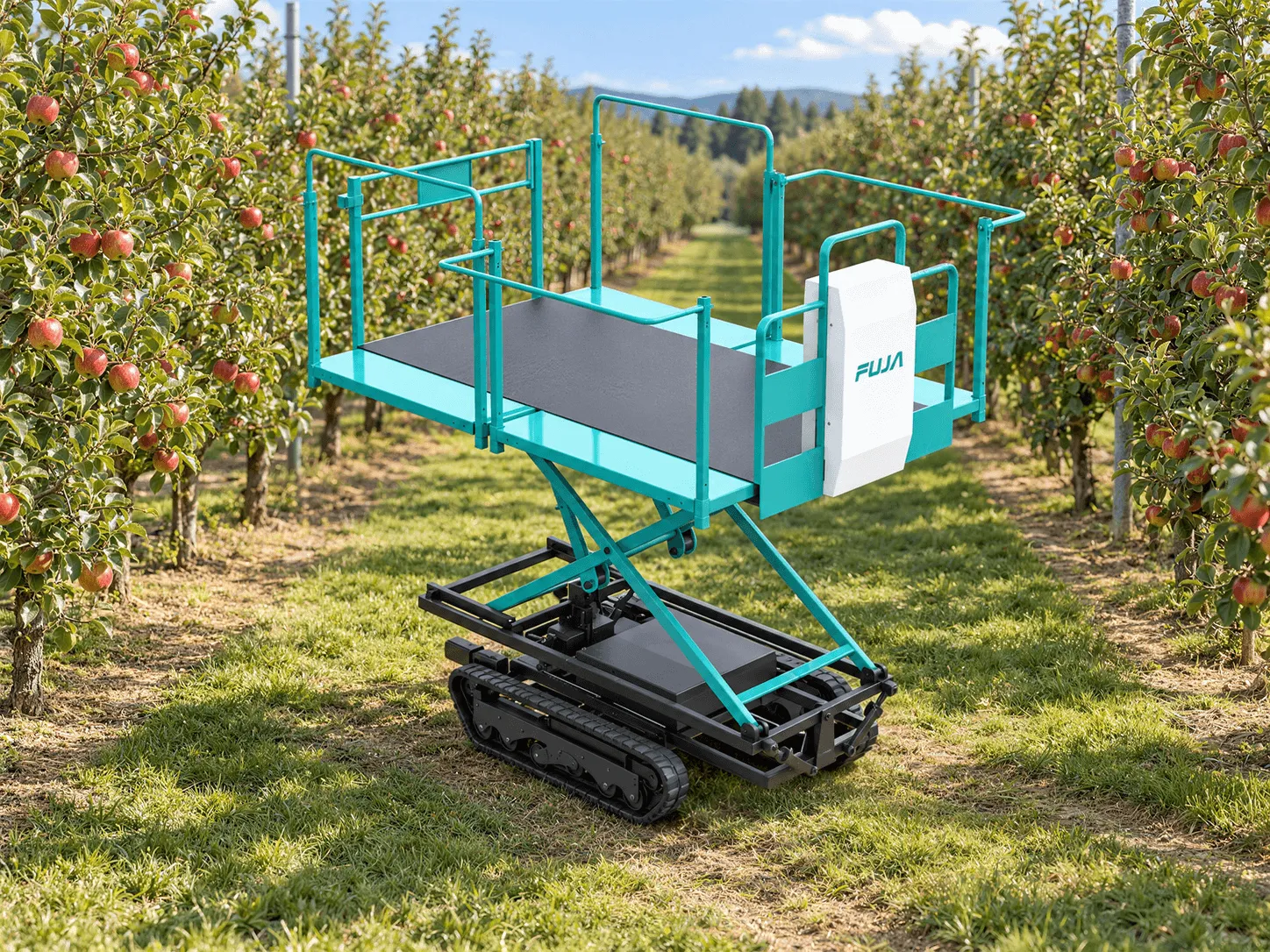

Battery-powered crawler platform built for multi-purpose orchard work. Minimum ground clearance 260 mm, 48 V / 16 kW electric drive.
Operated by remote control or autonomous driving, one low-center-of-gravity crawler chassis takes rotary tillage and weeding tools, hauling bodies, a dozer blade, plus an elevating platform for picking and pruning — replacing several single-purpose machines across the orchard cycle.
Advantages
• One chassis, many jobs
• Stable on hillside rows
• Electric drive, no exhaust, little noise
Specifications
| Item | Unit | Value |
|---|---|---|
| Overall Dimensions (L × W × H) | mm | 2100 × 800 × 900 |
| Total Weight | kg | 1502 |
| Track Gauge | mm | 980 |
| Min. Ground Clearance | mm | 260 |
| Min. Turning Radius | mm | 1600 |
| Transport Speed | km/h | 0–8 |
| Lifting Height | mm | 2000 |
| Leveling Angle | ° | 10 |
| Max. Load Capacity | kg | 600 |
| Drive Type | / | Motor Drive |
| Voltage | V | 48 |
| Power | kW | 16 |
| Application | / | Multi-purpose operations |
