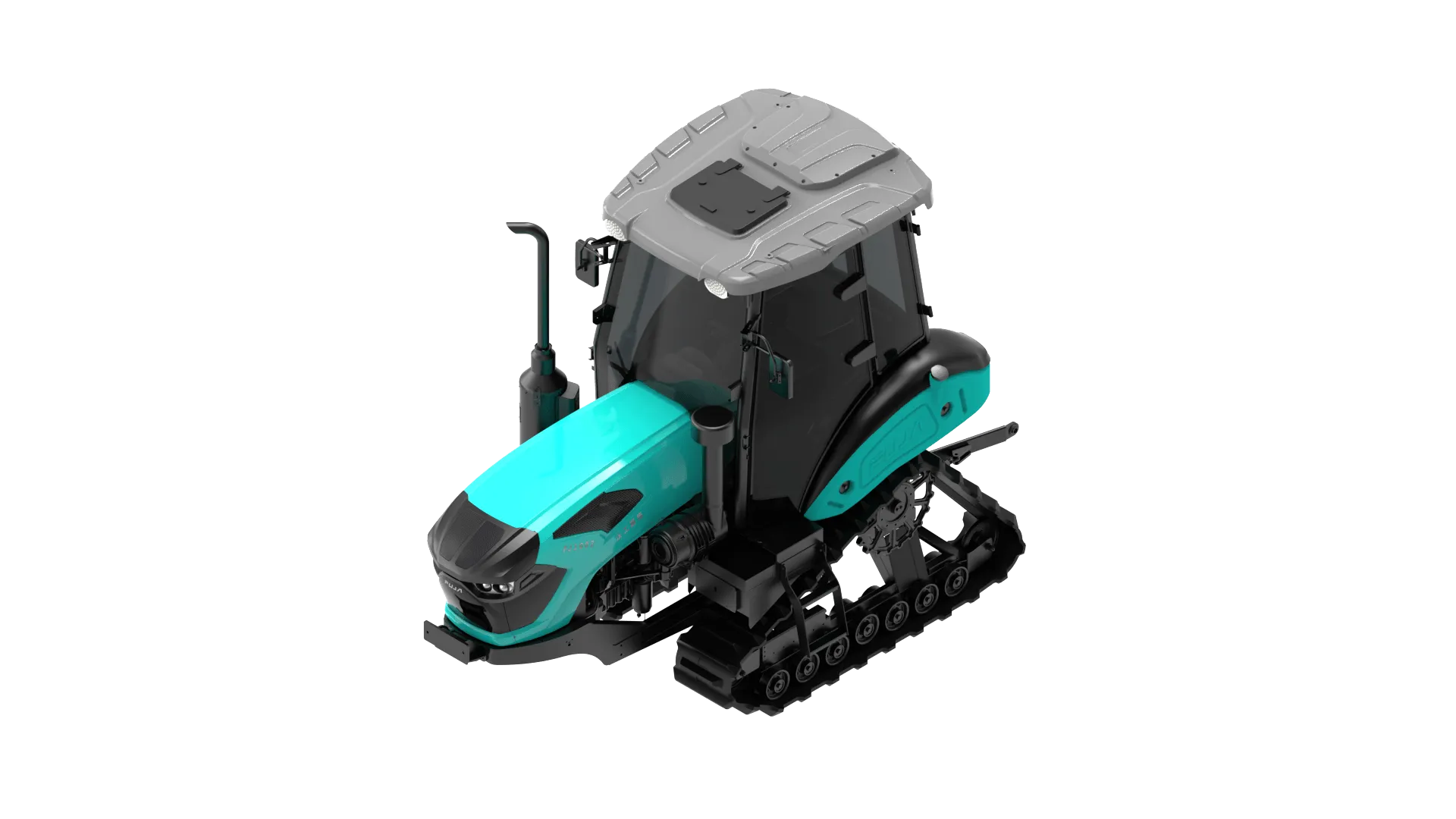

FJ1202 Crawler Tractor rated at 120 hp with China Stage IV engines, 12F/12R, 63 track links, 720/1000 rpm PTO.
The crawler tractors are well equipped and comfortable to operate. They feature differential steering, a double-acting clutch, automatic implement lift when reversing, automatic depth control, and auto-leveling — making them a productive choice for large-scale farms.
Advantages
• 1640 mm track ground contact length
• 600 mm clearance for rough, wet ground
• Grip and stability for larger implements
Specifications
| Item | Unit | Value |
|---|---|---|
| Overall Dimensions (L × W × H) | mm | 4250 × 1900 × 2740 |
| Min. Operating Weight | kg | 3435 |
| Min. Ground Clearance | mm | 600 |
| Track (Width × Pitch × Links) | mm | 450 × 90 × 63 |
| Track Gauge | mm | 1300 |
| Track Contact Length | mm | 1640 |
| Steering Type | / | Differential Steering |
| Gears (Forward/Reverse) | / | 12/12 |
| Max. Travel Speed | km/h | 16 |
| PTO Speed | r/min | 720/1000 |
| Engine Manufacturer | / | YTO (Luoyang) Diesel Engine Co., Ltd. |
| Engine Model | / | YTN3130-44 (China Stage IV) |
| Rated Power | hp | 120 |
| Fuel Tank Capacity | L | 260 |
