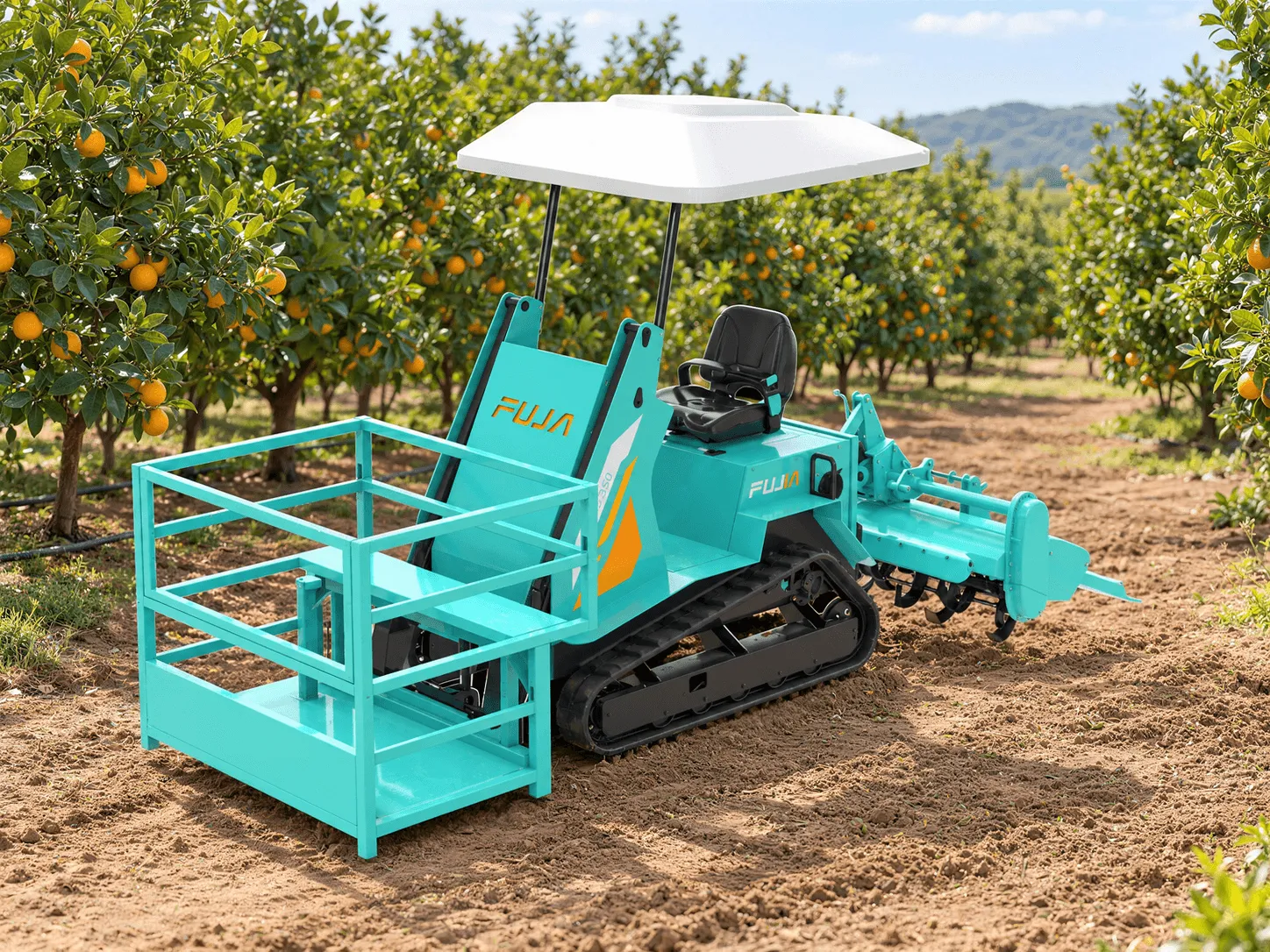

FJD-GP2000B Electric Crawler Orchard Work Platform, 600 kg platform load, working height up to 2,000 mm, 360° pivot turning, 24 V / 1.6 kW, 2.4 km/h.
Lifting works while travelling, and the platform extends to 2,888 mm, so the operator reaches across a row without repositioning the machine. Levelling adjusts up to 10° left, right and front to keep the platform level on uneven ground. With no rails required, it covers picking, pruning, orchard management and material hauling.
Advantages
• Stable base for work at height
• Electric drive, zero emissions
• 360° pivot turning
Specifications
| Item | Unit | Value |
|---|---|---|
| Model | / | FJD-GP2000B |
| Overall Dimensions (L × W × H) | mm | 3200 × 2300 × 2682 |
| Extended Working Platform | mm | 2888 |
| Max. Lift Height | mm | 2000 |
| Min. Height (lowered) | mm | 1000 |
| Leveling Angle (L / R / Front–Rear) | ° | 10 / 10 / 10 |
| Total Weight | kg | 1502 |
| Max. Load Capacity | kg | 600 |
| Voltage | V | 24 |
| Power | kW | 1.6 |
| Travel Mode | / | Endless Track Type |
| Drive Motor Type | / | Motor Drive |
| Travel Speed | km/h | 2.4 |
