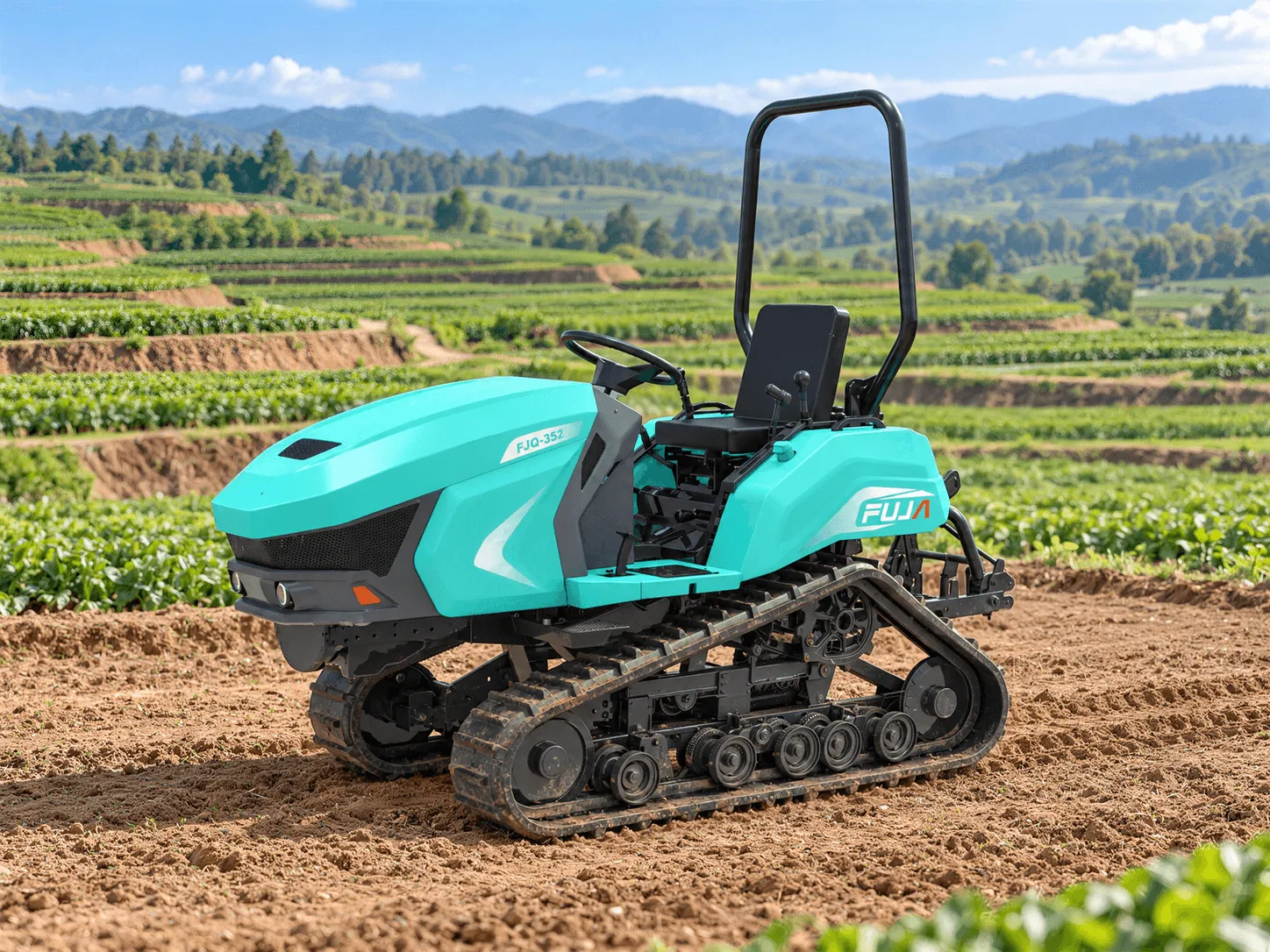

Compact crawler tractor with a 3-cylinder China Stage IV engine, 350 mm ground clearance, 8F/8R gears, 0.4–8.0 km/h.
Automatic lift and levelling, automatic tillage-depth control and a reversible PTO let it run a wide range of implements. Differential steering keeps it agile in tight headlands, so it suits hilly and mountainous plots. Simple to operate, it takes on work that heavier wheeled tractors cannot reach.
Advantages
• Automatic implement control
• Tracked traction with low soil compaction
• Compact 1,150 mm body, narrow enough for greenhouse
Specifications
| Item | Unit | Value |
|---|---|---|
| Model | / | FJQ-352 |
| Overall Dimensions (L × W × H) | mm | 2900 × 1150 × 1900 |
| Min. Operating Weight | kg | 1025 |
| Min. Ground Clearance | mm | 350 |
| Track (Width × Pitch × Links) | / | 350 × 90 × 46 |
| Track Ground Pressure | kPa | 9.1 |
| Track Contact Length | mm | 1450 |
| Overall Track Width | mm | 1150 |
| Number of Cylinders | / | 3 |
| Gears (Forward / Reverse) | / | 8 / 8 |
| Travel Speed | km/h | 0.4–8.0 |
| Working Width | mm | 1100–1500 |
| Steering Type | / | Differential Steering |
