Compact and flexible crawler tractor with stepless speed control, differential steering and in-place turning. Its narrow-track design is suited to hilly tobacco weeding, medicinal-herb cultivation and sweet potato ridging.

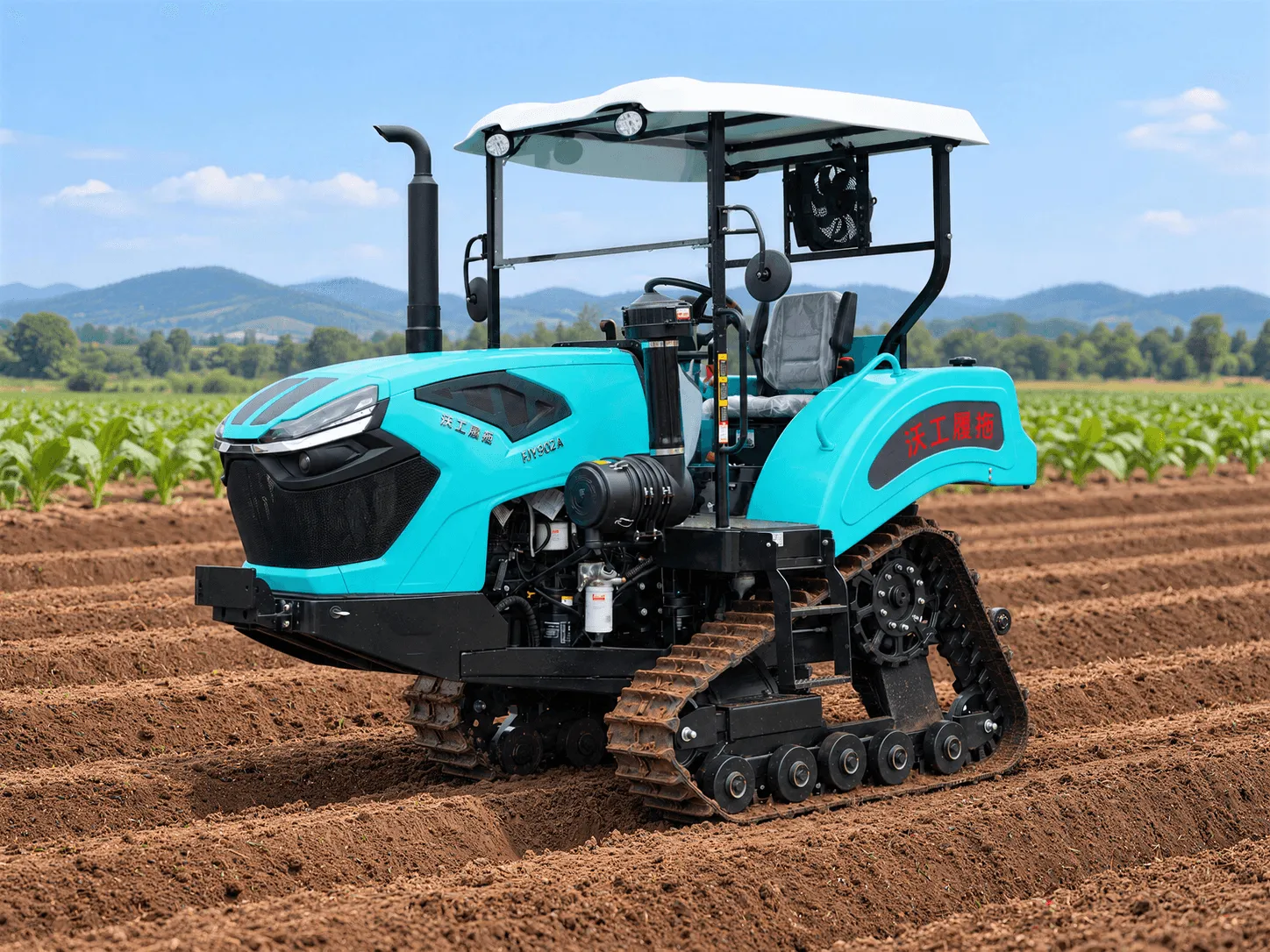

The FJY Series crawler tractor is compact, flexible and comfortable to operate. It features stepless speed control, differential steering, in-place turning and smooth forward/reverse travel. Designed with a narrow track gauge, it combines agricultural machinery with agronomic needs for hilly-area tobacco weeding, medicinal-herb cultivation and sweet potato ridging.
Advantages
• Multi-range stepless speed control
• Shuttle shifting for smooth forward and reverse travel
• Differential steering with in-place turning
• Three-way hydraulic control valve
• High efficiency and low fuel consumption
Specifications
| Item | Unit | Value |
|---|---|---|
| Model | / | FJY902A |
| Overall Dimensions (L × W × H) | mm | 3400 × 1720 × 2650 |
| Min. Operating Weight | kg | 2750 |
| Min. Ground Clearance | mm | 500 |
| Track (Width × Pitch × Links) | / | 350 × 90 × 52 |
| Track Gauge | mm | 1120 |
| Track Contact Length | mm | 1240 |
| Steering Type | / | Differential Steering |
| Max. Travel Speed | km/h | 14.82 |
| PTO Speed | r/min | 720/1000 |
| Fuel Tank Capacity | L | 105 |
| Engine Manufacturer | / | YTO Luoyang Diesel Engine |
| Engine Model | / | YTN4100-44T |
| Rated Power | kW | 66.2 |
| Gears (Forward / Reverse) | / | 4 / 4 (hydraulic) |
