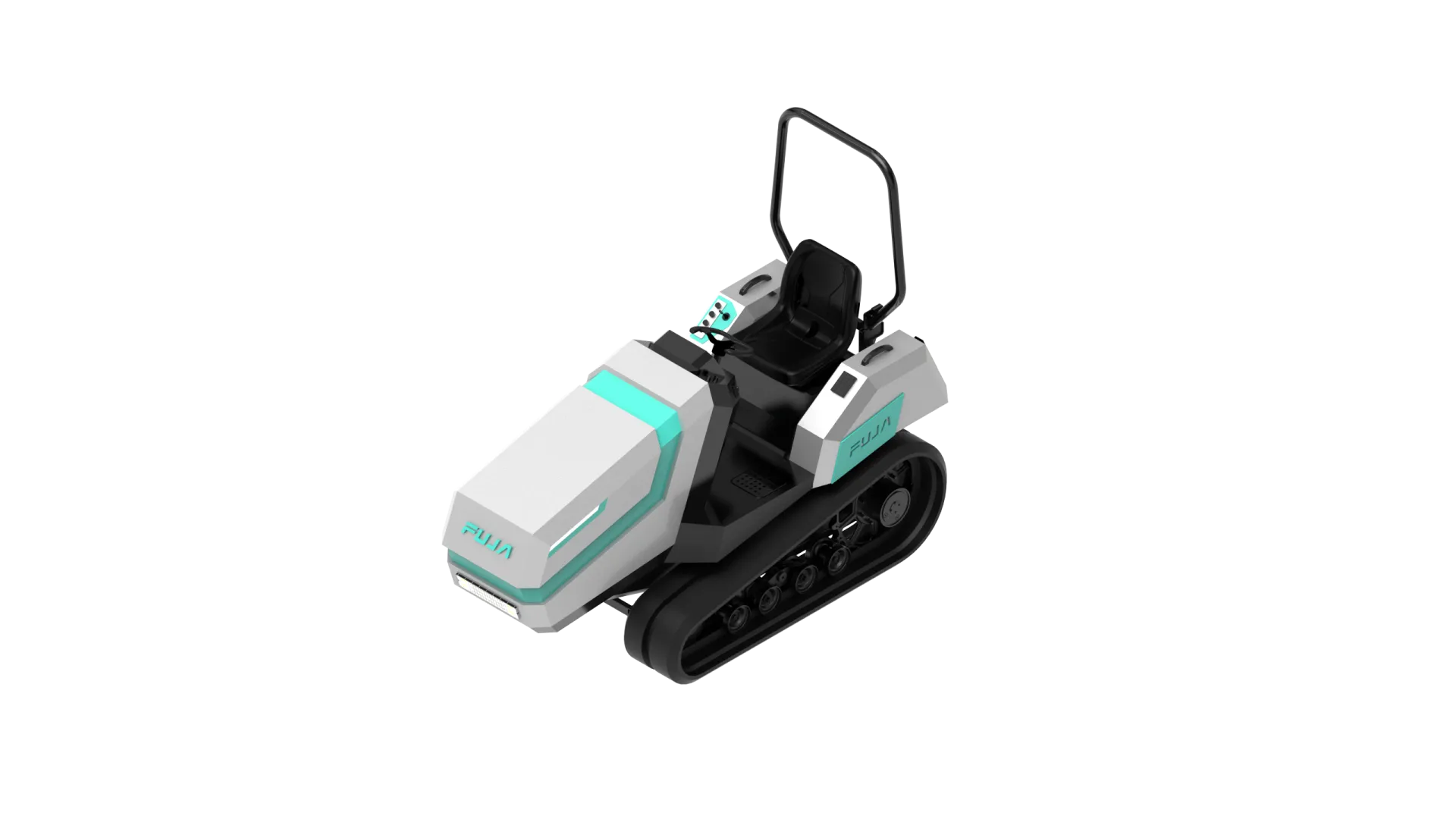

Compact crawler tractor for hilly and mountainous areas, greenhouses and orchards. Features 420 mm ground clearance, 36.8 kW engine power and 8F/8R gears, with optional automatic working depth control, automatic leveling and intelligent driving modules.
The FJZ Series Crawler Tractor was developed for hilly and mountainous areas in southern China and for modern protected agriculture. It can be equipped with automatic working depth control and automatic leveling control, and offers optional intelligent modules for driver assistance and autonomous driving — covering paddy fields, greenhouses, and orchards to meet the needs of different applications and customers.
Advantages
• Compact & Agile
• Multi-Function
• Simple Operation
• Wide Application Range
Specifications
| Item | Unit | Value |
|---|---|---|
| Model | / | FJZ502 |
| Overall Dimensions (L × W × H) | mm | 3050 × 1550 × 2460 |
| Min. Operating Weight | kg | 1971 |
| Min. Ground Clearance | mm | 420 |
| Track (Width × Pitch × Links) | / | 350 × 90 × 50 |
| Track Gauge | mm | 1150 |
| Track Ground Contact Length | mm | 1400 |
| Steering Type | / | Planetary Differential Steering |
| Max. Travel Speed | km/h | 15.98 |
| Rated PTO Speed | r/min | 2400 |
| Fuel Tank Capacity | L | 105 |
| Engine Manufacturer | / | Quanchai |
| Engine Model | / | V28-50C42 |
| Engine Rated Power | kW | 36.8 |
| Gears (Forward / Reverse) | / | 8 / 8 |
